If you’ve delved into electrical wiring or researched solar installation, it is inevitable to have come across the term t w cable. But what does it mean, and why is it so commonly heard? Top Solar Picks guide will cover everything important about TW cable-his properties, various applications, comparing it to other types of wiring, pricing, and safety tips.

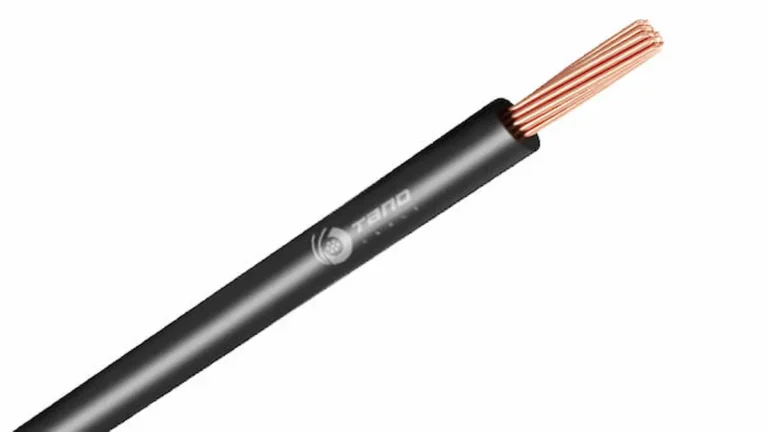

What is T W Cable?
TW Cable is the name given to Thermoplastic-coated, moisture-resistant wire. It is an electrical conductor which is fitted with thermoplastic insulation to block moisture but does not prevent extreme heat.
This is why TW cables are usually used in residential and light commercial wiring where moderate protection is required against moisture since they are not as heat resistant as some new cables like THHN cables. Hence, this actually makes T W cables best suited in dry indoor environments.
Key Features of T W Cable
TW cable has some unique characteristics that make it distinct:
- Thermoplastic insulation: provides basic protection against moisture and abrasion.
- Moisture-resistant: for indoor use. Not for use underground, wet, or outside without further protection.
- Lower heat rating; only around 60 degrees C (140 degrees Fahrenheit), while THW or THHN wires can take a bit higher temperature.
- Conductor copper or aluminum: depending from type or its application.
Common Applications of T W Cable
You will find TW cables in almost all kinds of electrical circuitry, in particular:
- Residential wiring: lights circuits, outlets, and small appliances.
- Conduit installations: usually placed inside electrical conduits for extra caution.
- Solar wiring: older plants would use DC circuits in some cases. However, THWN or PV-rated cables are more favored these days.
- Light commercial wiring: small offices, indoor electrical distribution.
Important note: TW cable isn’t meant for outdoor or high-temperature usage. For wiring support in solar panels or outdoor utility connections, we recommend THWN or USE-2 cables.
TW vs THW vs THWN vs THHN – What’s the Difference?
When researching about TW cable, you come across the same codes like THW, THWN, or THHN. The letters show the different types of insulation properties.
- TW: Thermoplastic, moisture resistant, and 60°C maximum.
- THW: Thermoplastic, Heat, and Water-resistant, with maximum ratings at 75°C.
- THWN: Thermoplastic, Heat and Water-resistant, Nylon-coated, good for wet and dry locations.
- THHN: Thermoplastic, High-heat-resistant, Nylon-coated, very widely used in modern wiring.
In a nutshell, then, TW is an older standard while THHN/THWN are newer, more durable wires that do meet modern safety codes.
Advantages of TW Cable
- Economical compared to modern wires.
- Offers security for low-load indoor circuits.
- Simple inside conduits.
- Readily available in most hardware and electrical shops.
Disadvantages of TW cable
- Low-temperature rating (60°C only).
- Not at all capable of handling outdoor and underground usage without extra protection.
- Not efficient under heavy load or modern solar/electrical systems.
- Replacing THWN/THHN wires into which most building codes are fast becoming standard.
TW Copper Cable Size and Ampacity Chart
TW cables vary in sizes (measured in AWG-American Wire Gauge), which also dictate their current-carrying capacity.
| Cable Size (AWG) | Ampacity (60°C) | Common Use |
|---|---|---|
| 14 AWG | 15 Amps | Lighting, small outlets |
| 12 AWG | 20 Amps | Standard outlets, small appliances |
| 10 AWG | 30 Amps | AC units, water heaters |
| 8 AWG | 40 Amps | Larger appliances, sub-panels |
| 6 AWG | 55 Amps | Feeders, heavy loads |
Always check local electrical codes before you install.
TW Cable Price Range
TW wire costs vary according to size, conductor material (copper or aluminum), and length. Generally speaking, the average pricing is as follows:
- 14 AWG TW copper wire: $0.10–$0.25 per foot.
- 12 AWG TW copper wire: $0.20–$0.40 per foot.
- 10 AWG TW copper wire: $0.40 to $0.70 per foot.
- Between $15 and $60, depending on the size, for whole rolls of 100 ft.
Bulk buying is a good option for solar or huge electrical installation projects.
Safety Tips for Using TW Cable
- Check the rating: The ampacity of the cable should coincide with the demand of your circuit.
- Conduit usage: There should always be protective conduit over TW cables.
- Make it clear that this is not to be used outdoors: TW does not stand up against UV exposure or in wet conditions.
- Get an electrician: If unsure, consult a professional.
FAQs About TW Cable
1. Can TW cable involve outdoors?
It is not recommended. TW cable is only moisture-resistant, not waterproof. For outdoor use, THWN or USE-2 is a safer alternative.
2. Is TW cable good for solar panels?
So long as it is inside circuits with direct current, it can be used. Most modern solar systems would use PV-rated or THWN-2 cables.
3. What’s the temperature rating of TW cable?
This one is rated up to 60°C (140°F) maximum.
4. Is TW cable still being used today?
That’s right. It is, but not as much as THHN or THWN wire, which are more versatile and safer.
- Related Post: Best Solar Cables and Solar Panel Extension Cables for Your System (2025 Buying Guide)
Conclusion
TW cable is basic but very necessary electrical wiring. It is known for its insulation property being thermoplastic and that it has moisture resistance. Although it is affordable and can serve well in many residential applications, over time, it has slowly been replaced in most advanced wiring types like THWN and THHN that can take higher temperatures and better withstand outdoor conditions.
If your wiring needs involve a household, office, or solar project, understanding the differences between these cables can help ensure that you are choosing the safest and most cost-effective option.
